24" Wide Built-In All-Refrigerator, ADA Compliant (Panel Not Included) - ASDS2413IFLHD

24" Wide Built-In All-Refrigerator, ADA Compliant (Panel Not Included)

Model: ASDS2413IFLHD

24" Built-In All-Refrigerator, ADA Compliant ASDS2413IFLHD24" Built-In All-Refrigerator, ADA Compliant ASDS2413IFLHD24" Built-In All-Refrigerator, ADA Compliant ASDS2413IFLHD24" Built-In All-Refrigerator, ADA Compliant ASDS2413IFLHD24" Built-In All-Refrigerator, ADA Compliant ASDS2413IFLHD24" Built-In All-Refrigerator, ADA Compliant ASDS2413IFLHD24" Built-In All-Refrigerator, ADA Compliant ASDS2413IFLHD
24" Built-In All-Refrigerator, ADA Compliant ASDS2413IFLHD
24" Built-In All-Refrigerator, ADA Compliant ASDS2413IFLHD
24" Built-In All-Refrigerator, ADA Compliant ASDS2413IFLHD
24" Built-In All-Refrigerator, ADA Compliant ASDS2413IFLHD
24" Built-In All-Refrigerator, ADA Compliant ASDS2413IFLHD
+2more

Color : Panel-Ready

24" Built-In All-Refrigerator, ADA Compliant ASDS2413IFLHD
Panel-Ready

Key Features

  • 24" Wide Shallow Depth All-Refrigerator

  • Less than 18" deep

  • ADA compliant design

  • Adjustable height

  • Built-in capable

  • Panel-ready door

  • Stainless steel door

  • Stainless steel interior

Read More

Description

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations. Model ASDS2413IFLHD is a 24" wide all-refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. The door features a European-style fully articulating hinge for smooth opening. This also allows the door to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 28.38" H x 23.4" W; maximum weight: 10 lbs.). Note: this unit ships with a handle for optional use (not shown in image). Customers may also supply their own (as shown) to better match their existing cabinetry. Inside, the ASDS2413IFLHD features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes cantilevered shelving in chrome for flexible storage. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, wine cellars, and more.
Read More

Available from Appliance Home Store Inc, serving customers throughout South Carolina.

Features
Specifications

Features

24" Wide Shallow Depth All-Refrigerator

3.1 cu.ft. interior for residential cold storage

Less than 18" deep

Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

Adjustable height

Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

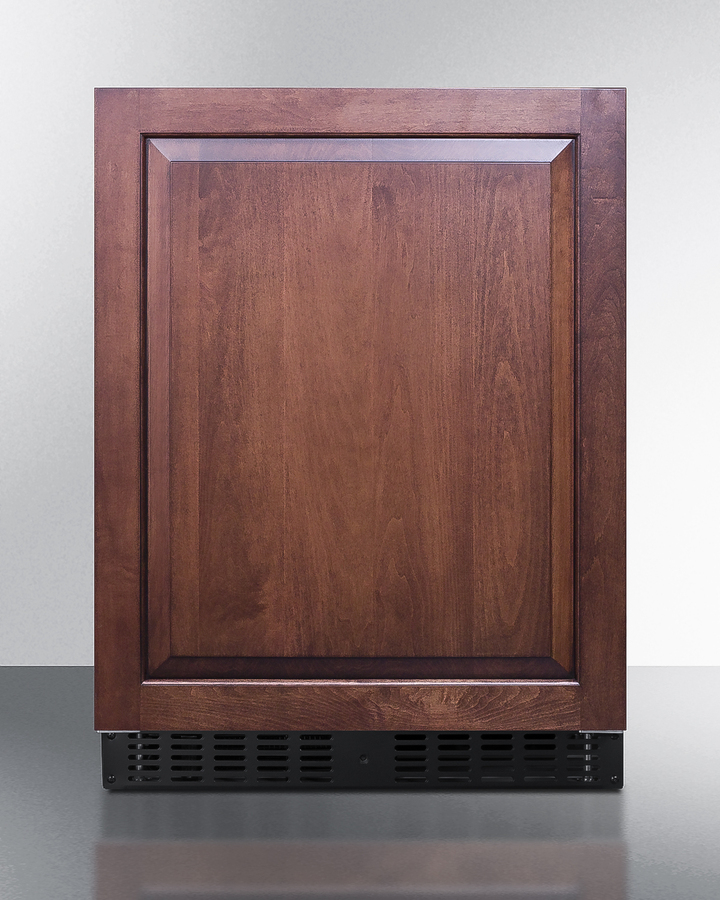

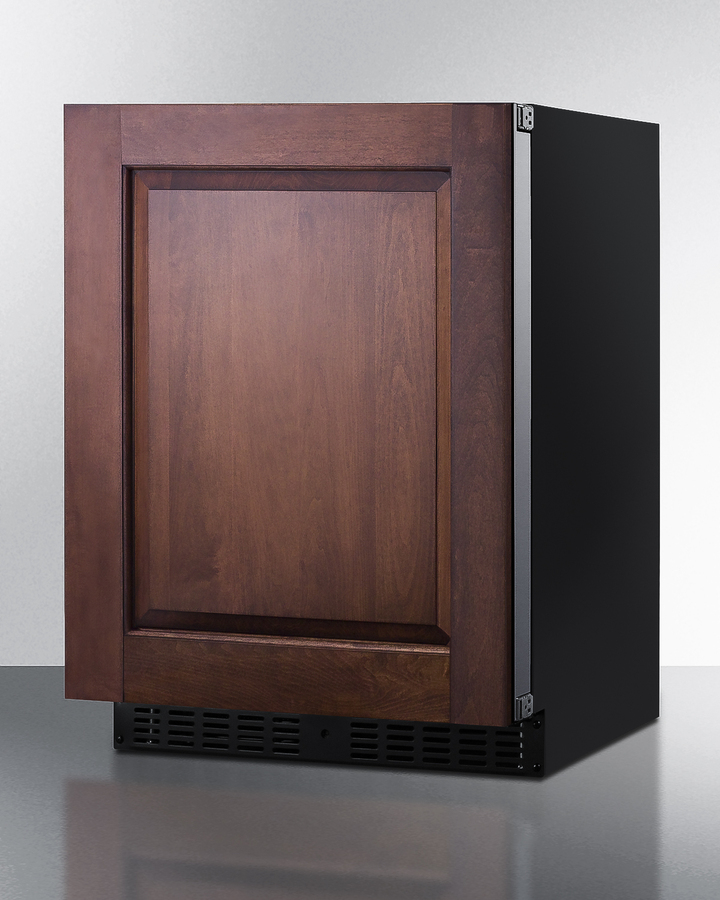

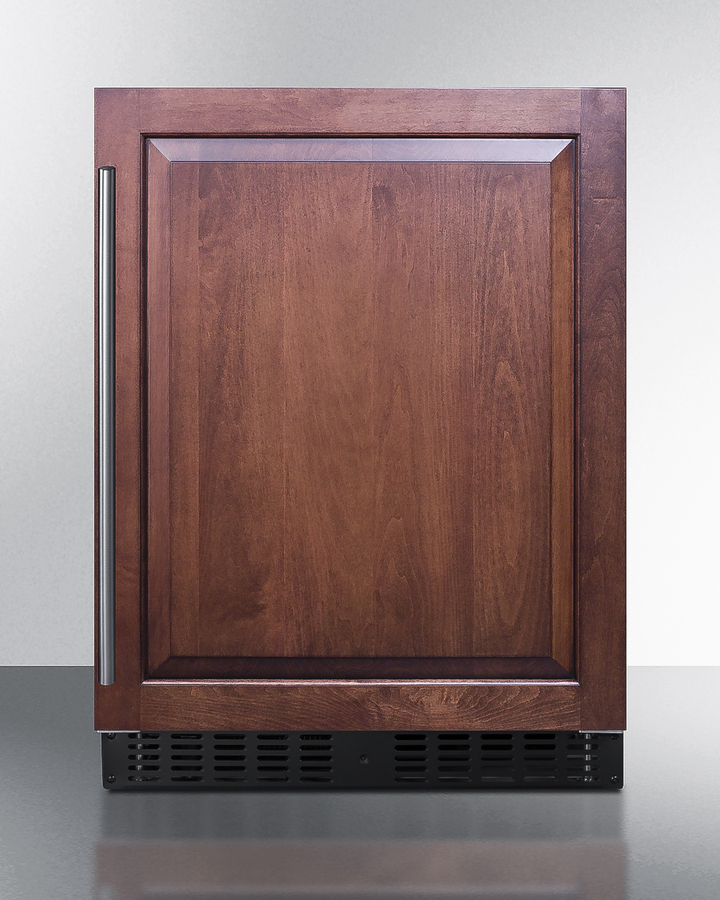

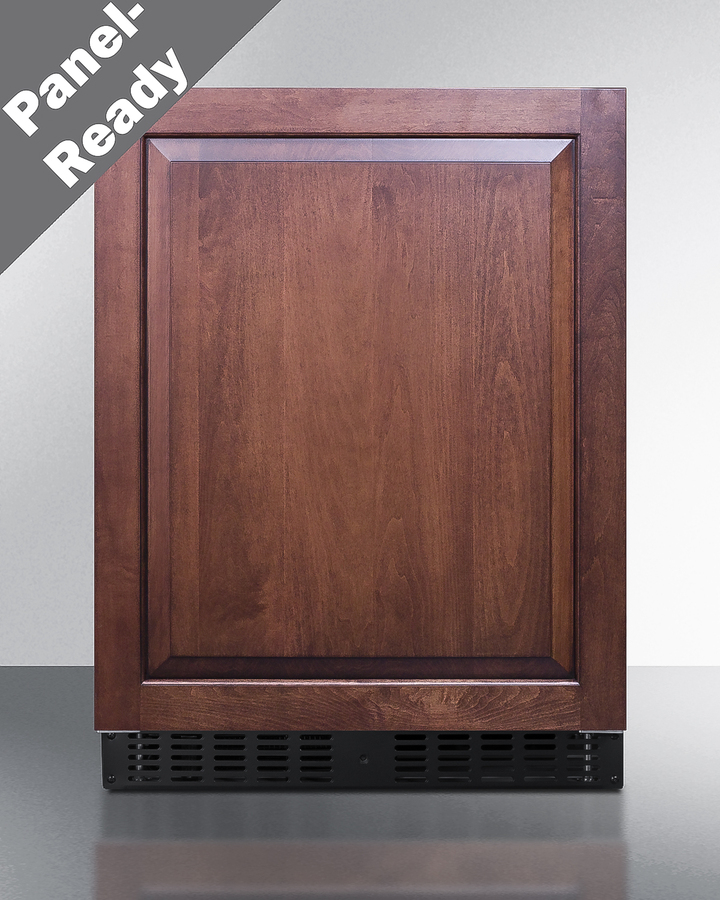

Panel-ready door

European style articulating door hinge allows the installation of overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 23.4" W x 28.38" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles

Stainless steel door

Fully finished door also allows you to choose a traditional stainless steel front if not installing an overlay panel

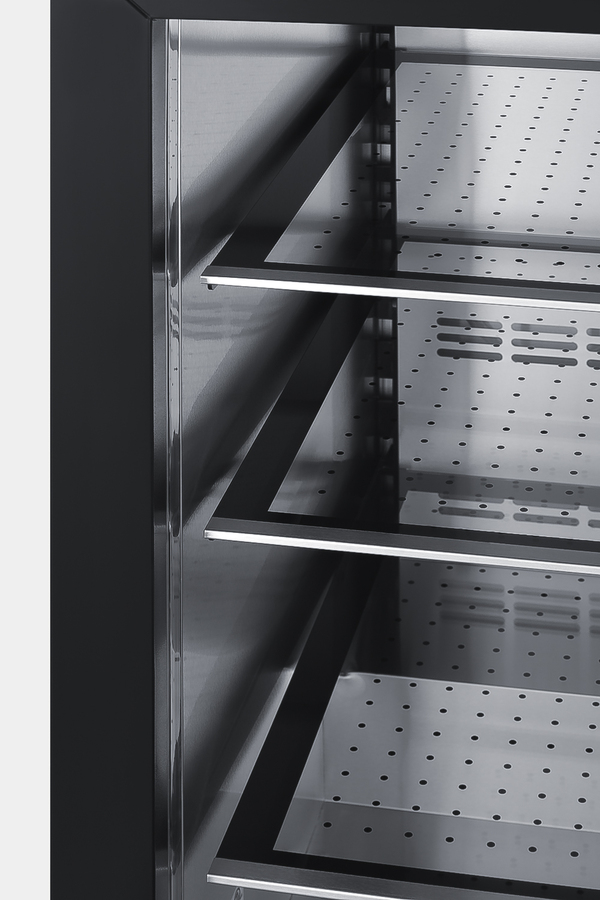

Stainless steel interior

Walls and floor are constructed from stainless steel for added strength and easy cleanup

Factory installed lock

Keyed lock for a secure interior (2 keys included)

Frost-free operation

No-frost operation for minimum user maintenance

Internal fan

Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

Digital thermostat

Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button

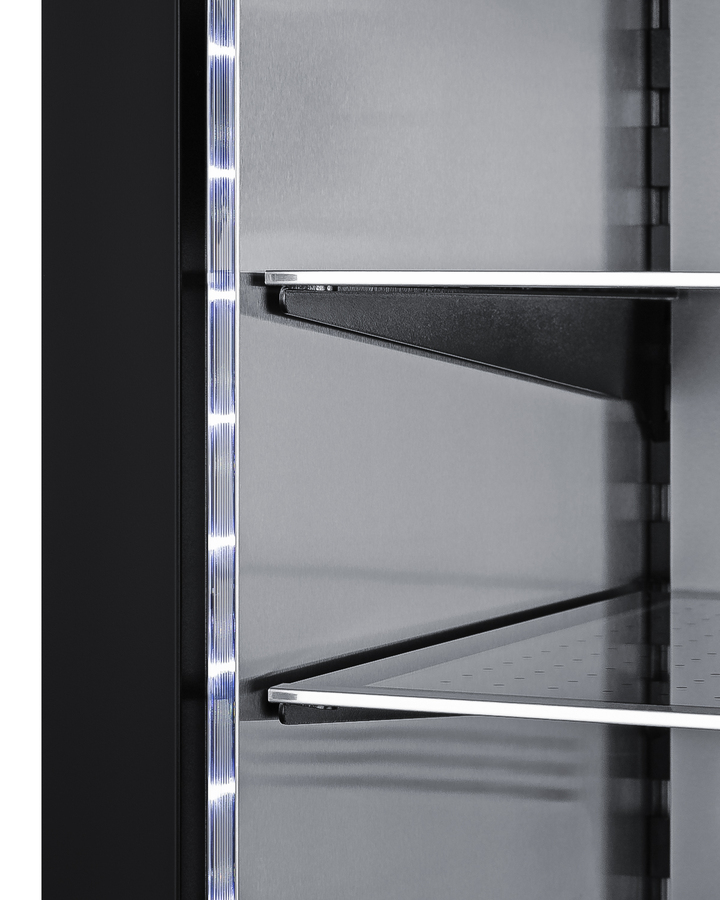

Dimmable LED lighting

Efficient and attractive presentation with LED lighting that can be adjusted between three levels of brightness

Cantilevered shelving

Adjustable chrome shelves with stainless steel clips allow you to adjust the shelf height for the best fit

Open door alarm

Audible alarm will sound if the door is left open longer than one minute

High temperature alarm

High temperature alarm sounds if the unit's interior goes out of the recommended range

Sabbath mode setting

Optional setting lets you disable the lighting and alarm for up to 48 hours

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Fully articulating European style hinge

Smoother opening and a better fit with an integrated European hinge

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back

Space-saving design with no exposed coils that offers easier cleanability

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Specifications

Overview Refrigerator Features Dimensions

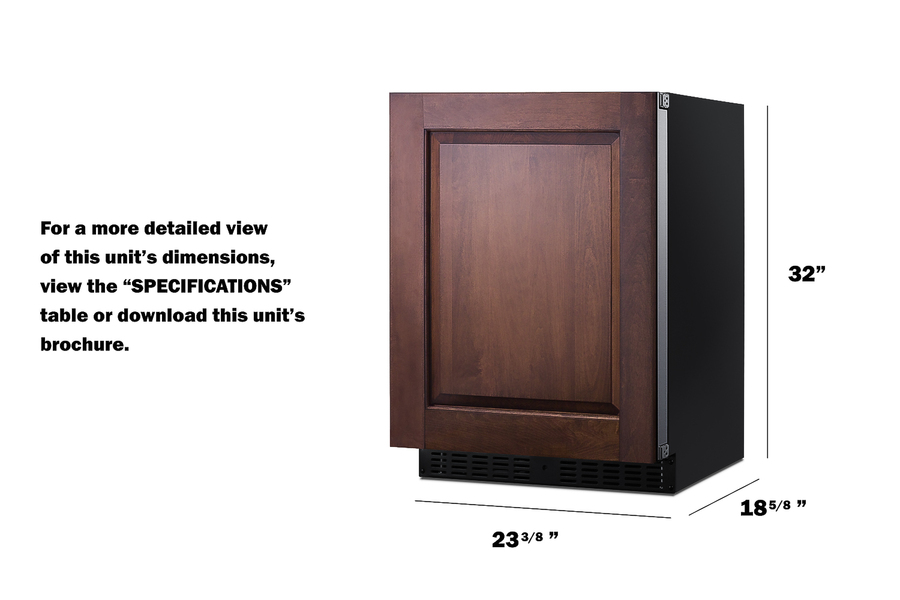

Nominal Height32.0" (81 cm)
Height of Cabinet32.0" (81 cm)
Nominal Width24.0" (61 cm)
Width23.38" (59 cm)
Nominal Depth18.0" (46 cm)
Depth17.75" (45 cm)
Depth with door at 90°40.0" (102 cm)
Capacity3.1 cu.ft. (88 L)
Defrost TypeFrost-Free
DoorPanel-Ready
CabinetBlack
US Electrical SafetyETL
Canadian Electrical SafetyETL-C
Energy Usage/Year215.0kWh/year
Amps1.0
Voltage/Frequency115 V AC/60 Hz
Weight89.0 lbs. (40 kg)
Parts & Labor Warranty1 Year
Compressor Warranty5 Years
UPC761101092782
Sabbath ModeYes
Door SwingLHD
ReversibleNo
Height AdjustableYes
Shelf TypeChrome
Shelf Qty3
Adjustable ShelvesYes
Thermostat TypeDigital
Fan TypeInterior and Exterior
Refrigerant TypeR600a
Refrigerant Amount1.38oz.
High Side PSI270.0
Low Side PSI105.0
Level Legs Qty4
Interior LightYes
Temperature Range36 to 43ºF
Sound Level32.9 dB
Interior Height24.25" (62 cm)
Interior Width19.5" (50 cm)
Interior Depth12.25" (31 cm)
Compressor Step Height3.75" (10 cm)
Compressor Step Width19.5" (50 cm)
Compressor Step Depth4.25" (11 cm)
